Elecdes

Design intelligent circuit diagrams faster with built-in automation and extensive libraries.

• 10,000+ symbols across IEC, ISA, ANSI, IEEE, JIC, JIS, and AS standards.
• Intelligent editing - insert, move, copy, and delete components while automatically maintaining connections, line breaks, and snaps.
• Automated generation of terminal strips, wiring diagrams, panel layouts, BOMs, and cable list tables directly on-drawing.
• PLC module builder with thousands of current I/O cards from major manufacturers.
• Rapid device deployment — swap contacts with a single click, insert relay subcomponents up to 90% faster, and insert parts directly from the catalog with automatic symbol selection.
• Smart annotation — automated wire and rung numbering, equipotential wire naming through terminal strips, incremental tag defaulting, and project-wide cross-referencing.

Watch demo

Introduction

Manage your entire project from a single, connected database.

• 200,000+ manufacturer parts from ABB, Siemens, Square D, Alstom, Telemecanique, and others — pick parts during circuit construction.
• Automated reporting — wire lists, cable lists, conductor lists, BOMs, drawing indexes, wire label/ferrule lists, and revision tracking all generated from your project data.
• Real-time cross-referencing for relay contacts/coils, tag names, and conductor continuations, with navigation tools to locate components across sheets.

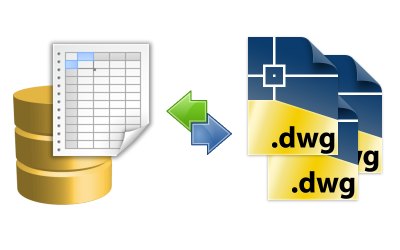

• Project-wide global editor for mass updates to tags, wires, terminals, and specs — with optional spreadsheet or external database integration.
• Cable scheduling — design and manage cabling entirely from the database.

Help when you need it, in the format that works for you.

• 800+ help topics with step-by-step instructions and tutorial videos.
• Tutorial videos, phone and email support, and training courses available.
